| 1 |
Sensor |
Electrochemical Fuel Cell |
| 2 |
Measuring Range |
00mg/100ml to 400mg/100ml or 0.00 to 0.8BAC% |
| 3 |
Accuracy |
+/-0.004BAC% at 0.16BAC % or +/-2% at 80mg/100 ml |
| 4 |
Units of measurement |
BAC, mg/100 ml, BrAC, mg/L |
| 5 |
Display |
128x64 Graphical LCD that displays, alcohol content, serial no, date, battery level, Time. |
| 6 |
Memory |
9999 Memory with date, time, alcohol
Content. Memory is not erased even if the power is switched OFF. |
| 7 |
Printer |
In Built dot matrix Plain Paper printer that prints Alcohol Content. Serial Number, Date, Time Facility to feed drivers name, license no, registration no, address, officer name and place. |
| 8 |
PC Connectivity |
The entire data can be downloaded to a PC
Through USB cable (compatible to Windows or Linux) |
| 9 |

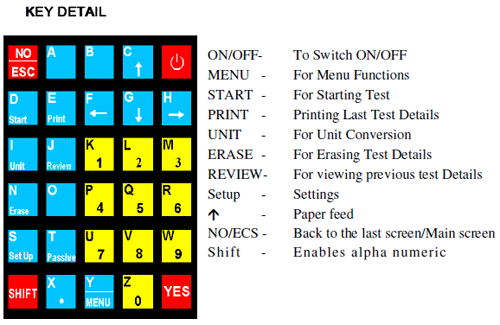

Switches and Buttons |
ON/OFF, View up, View down, Print, Erase, Start etc. |
| 1o |
Power Source |
Built in rechargeable battery (7.4V 2000maH) to take 150 Printouts minimum |
| 11 |

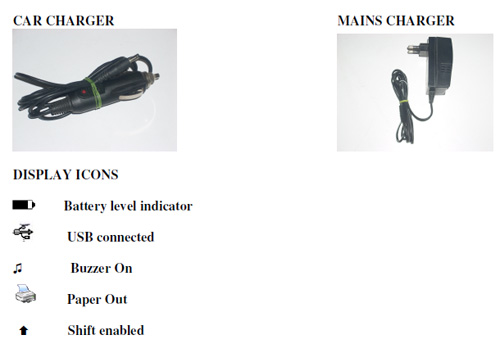

Mains Charger |
SMPS charger is provided to operate from 185 to 270volts |
| 12 |
Car Charger |
Adapter for cigarette lighter socket with coil leads to charger unit |
| 13 |
Operating temperature* |
-15 to 55 Degree Celsius *(On special request –20 to 70 degree celsius) |
| 14 |
Blow pipe |
Disposable Straw (1000 Straws supplied with Each Analyzer) |
| 15 |
Installation software |
Software to download data to PC through USB port |
| 16 |
Accessories |
Carry case for the Instrument and USB cable ,charger provided |
| 17 |
Processor |
ARM based micro controller |
| |
|
|

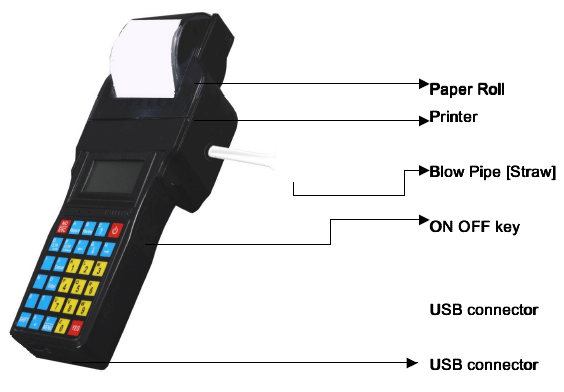

- MLAE PLUTONIA ALCOMETER
