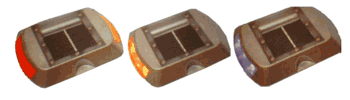

Aluminum Solar Road marker - H 932
| Features |
- Built in Solar panel with auto
actuated recharge and flash system.
- Super bright LEDs.
- Low power consumption.
- High strength aluminum alloy
housing.
- Available in Red, Amber ,white
LEDs.
- Battery and ultra capacitor
models are available.
- 72 hrs operation on fully charged
battery.
- Single side or double side LEDs
available.
Application
- Pedestrian crosswalk, road junction
- Curved roadways, highway line
indicator
- Hazard zone warning
Specification
| |
Technical |
Battery |
Ultra Capacitor |
| Solar Panel(Mono
crystalline Silicon) |
Voltage |
2.5 V |
3 V |
| Current |
110 mA |
90 mA |
| Battery/Capacitor |
Type |
Ni-Cd battery |
Ultra capacitor |
| Voltage/current |
1.2V, 1100mA |
2.3V, 40F |
| LED-5 mm |
Number of LED |
3 or 6 |
3 |
| Intensity |
> 8000 mcd |
> 8000 mcd |
| Flashing
rate |
200+/-20% per minute |
150+/- 20% per minute |
| Dimension |
HxWxL- in mm |
20x100x125 |
20x100x125 |
|
Solar warning flash light - H 868
- Built in Solar Powered warning
light with ultra bright 5 mm LED.
- Auto actuated charging and flashing.
- One side and both side-flashing
models.
- Easy to mount on pole.
Application
- Pedestrian crosswalk, Curved
roadways, division indicator for
highways
| Specification |
|
| |
|
| Solar Panel |
Single crystal silicon,3 V,120
mA |
| Battery |
sealed lead rechargeable,2V,2.5
AH |
| LED |
5 mm,6 pcs, Red/Amber |
| Flashing rate |
60+/-20% per minute |
| Size |
18 fcm |
Solar Flash light-Round - H 906 |
Features
Application
- Pedestrian crosswalk, Curved
roadways, division indicator
for highways.
Specification
| Solar panel |
Single crystal silicon,2.5V,110mA |
| Battery |
1.2 V,1800mAH Ni-Cd |
| LED |
10 mm,6 nos Amber / Red |
| Flashing Rate |
150+/-20% per minute |
| Dimension |
11.5 fcm |
Delineator-Square type - H 902-9
- Built in solar panel with
auto actuated charge and flashing.
- Has got 9 lights each with
3 high bright 10mm amber LEDs.
- Easy to install on pole.
| Specification |
|
| |
|
| Solar Panel |
Single crystal silicon,3
V,240mA |
| Battery |
2V,5AH,Sealed lead rechargeable. |
| LED |
27 no,10 mm Amber colour
|
| Flashing rate |
120+/-20% per minute |
| Dimension |
45x45x4.3 cm |
Delineator- Rectangular type - H 902-2
- Built in solar panel with
auto actuated charge and flashing.
- Has got two lights each
with 6 pcs of 10 mm LEDs (Red
or Amber)
- Easy to install on pole.
Specification
| Solar Panel |
Single crystal silicon,3V,120
mA |
| Battery |
2V,2.5AH sealed lead rechargeable. |
| LED |
12 no,10 mm, Red or Amber
colour |
| Flashing rate |
120+/-20% per minute |
| Dimension |
38 x15 x 4.3 cm |
Delineators - Sunflower Type
- Built in solar panel with
auto charging and flashing.
- Has got 8 lights each with
6 no 10 mm amber LEDs.
- Easy to install on pole.
Solar pavement marker- H 928
Features
- Built in solar panel with
auto actuated charge and flashing.
- Super bright 5 mm LEDs (Red
or Amber)
- Tempered Glass out shell
can bear weight/load of 12,000
kgs.
Specification
| Solar Panel |
Single crystal silicon,2.5V,110
mA |
| Battery |
1.2V,1700mAH,Ni-Cd |
| LED |
8 nos,5 mm ,Red / Amber |
| Flashing rate |
300 +/-20% per minute |
| Dimension |
10.2 f x 4.5 cm |
Reflective Road marker-temered glass - H 200
Features
- Made of transparent tempered
glass with laminated aluminum
surface on the base.
- Impact resistance >15
tons.
- Refractive index: white
tigereye >1.521,yellow
tigereye>1.533
- Reflection ability 360 deg
all mirror surface reflection
- Available in white and yellow
colour.
Directional Arrow - H 933,H 897,H 897,H 893
- Typically placed along the
curved road to direct motorists.
- Built in Solar panel with
auto charge and flashing.
- Super bright LEDs makes
visibility upto 300 mtrs distance.
- Available in Red / Amber
LEDs.
- Different variety of arrow
signs available.
SOLAR EDUCATIONAL KIT
- Interactive / learning toys.
- Children can do a series of do-it-yourself experiments to acquire the basic knowledge of solar energy.
- Useful educational kits for schools to improve knowledge of electrical circuit and use of solar energy.
Model GM 722 : Consists of Musical unit and lamp.
Model GM 723: Consists of musical unit, plastic lamp, fan unit, motor accessories and plastic adaptors.
Solar Educational Kit-GM 724
|
|
|
- MLAE SOLAR PRODUCTS
