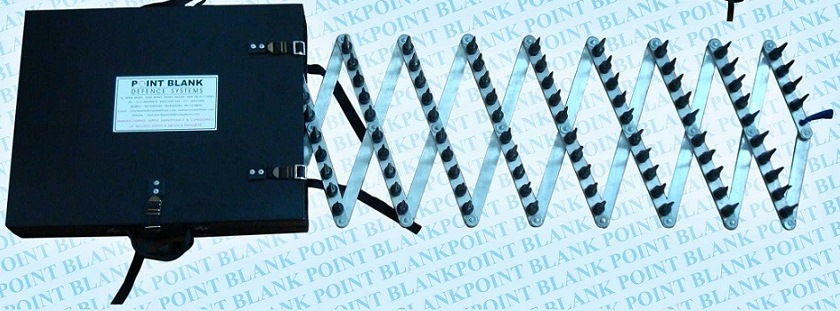

TECHNICAL SPECIFICATIONS

• Portable, Lightweight & Compact. Designed to be easily carried / Expanded /deployed by one person
• Can be deployed & retrieved while the deployer remains off the road
• Designed for rapid deployment to effectively deflate tyres of vehicle running over it (like truck, ,buses, cars, large lorries etc)
• Multi-directional effective and does not need any special angle or Side for development
• Can easily be stored in police vehicle in boot
• System safety hook provided for safeguard of the system when struck By vehicle tyres
• Can easily be extended up to 5m across the road
• Rust-free Construction of Complete Unit
• Scientifically designed Metal Alloy Spikes with a hollow centre to allow air safely at controlled rate.
• Suitable cord provided for system deployment across the road
• System can easily be removed back after deployment
• Spikes can easily be replaced on filed
• Deployment in total- 3minutes.
• Activation - 2 to 5 sec.
• Retraction time: < 10sec
• Fully Deployed Length : 5mtrs
• Weight (Approx): 12kgs
• Total No. of spikes:142
• Spike Length: 6cm(Approx)
• Spike Outer Dia : 1cm(Approx)
• Handling rope:Woven Polyester
• Rope Length: 80ft Rope Length with safety
• Hook side: 3m
• Spike Base: Cylindrical
• Spike Face: Pyramid
• Spare spike: 36nos
• Warranty: 3years.
